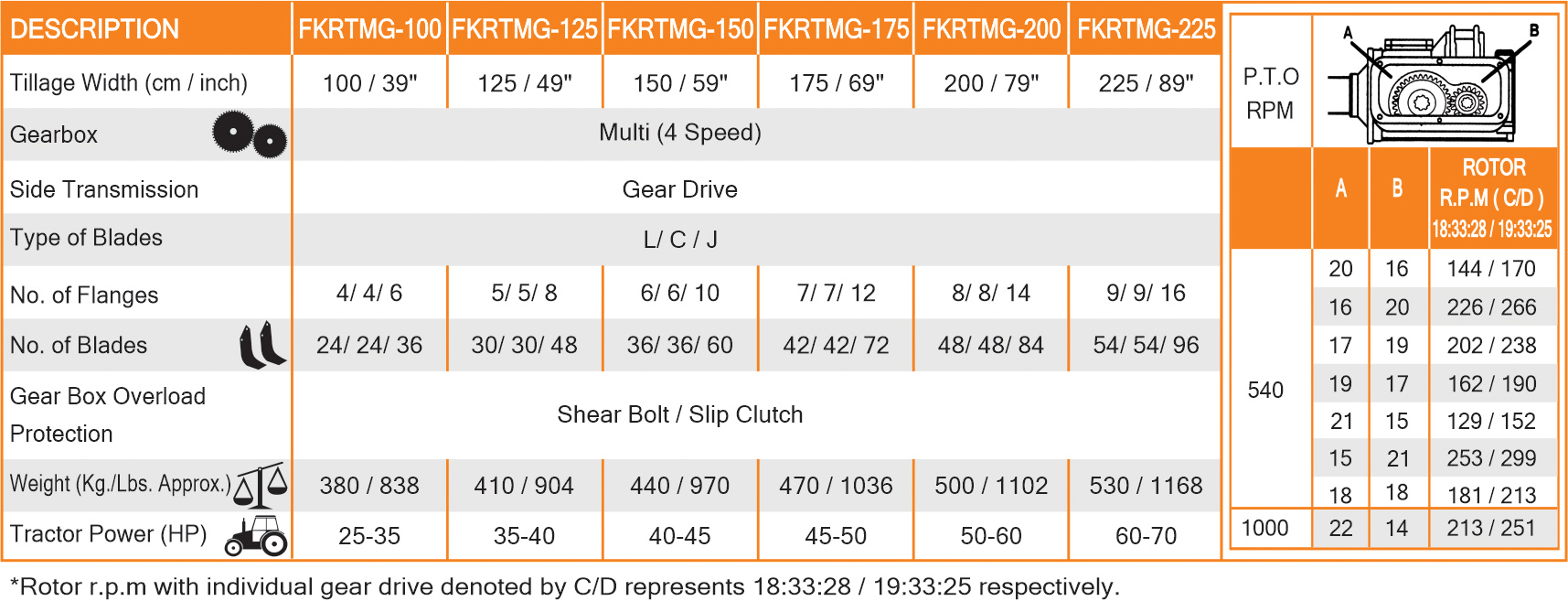

Specification
Regular Multi Speed

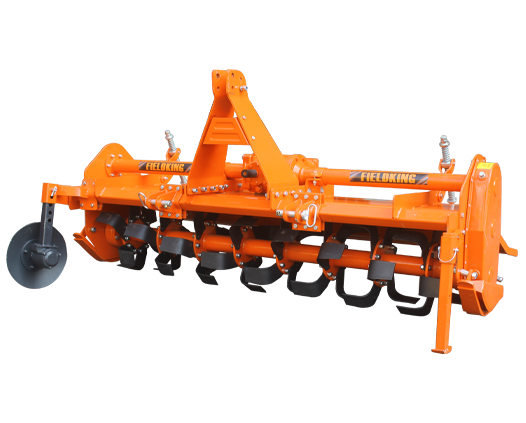

Rotary Tillers
- Multi Speed gear box provides option of 4 different rotor rpm for different soil condition and application.
- Heavy duty side gear drive in oil bath which ensures high performance in all working conditions.
- Can loosen & aerate soil up to 7 inches deep.

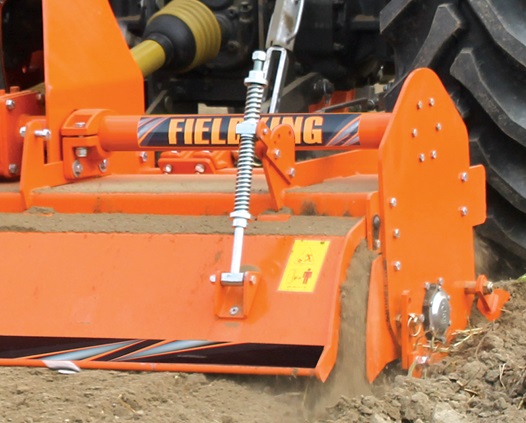

- Heavy duty spring assembly in plank which ensures perfectly levelled and finished seedbed.
- Boron steel blades that last 50% more than Hi Carbon.
- Helical arrangement of the blades puts less load on the tractor which makes tillage fast and economical

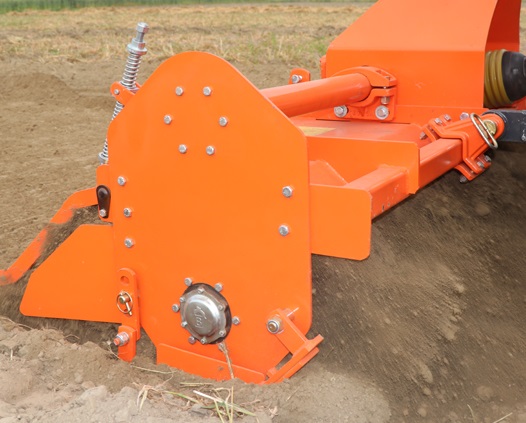

- Depth skid assembly for easy depth adjustment
- Available in L, C & J blade options for proper pulverization
- Heavy duty PTO shaft with shear bolt / slip clutch (optional) for overload protection
- Sealed bearings prevent moisture/mud entry
Parts Manual
-
-
