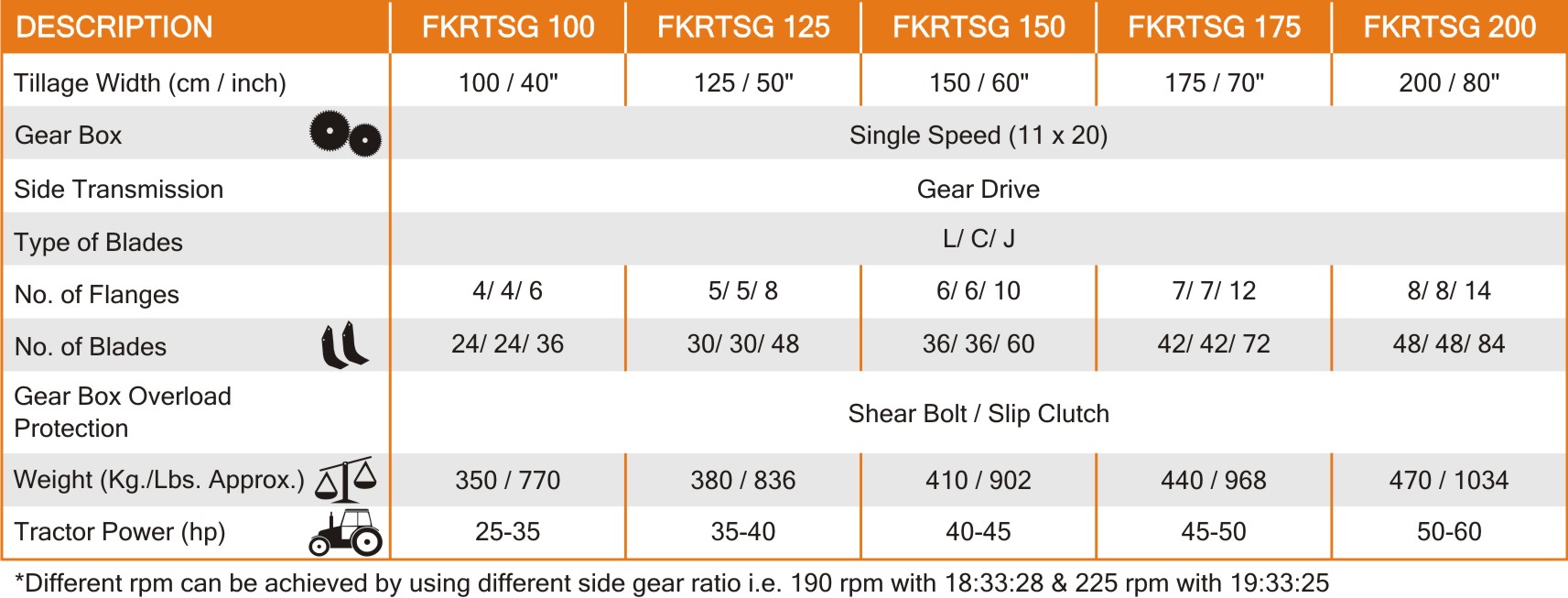

Specification

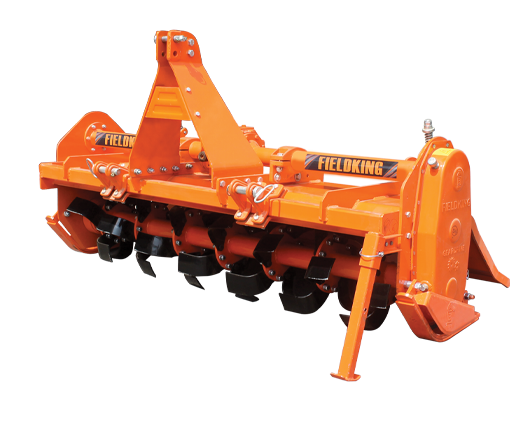

Regular Single Speed
Rotary Tillers

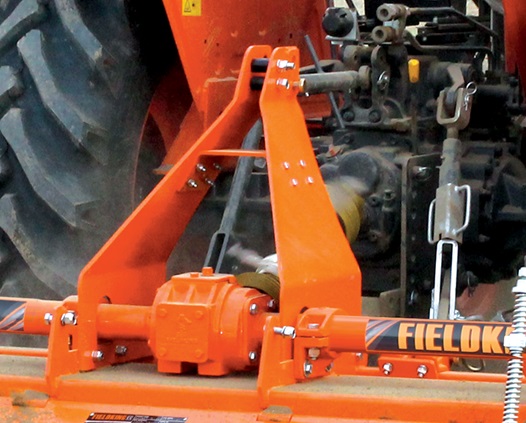

- Heavy duty side gear drive in oil bath which ensures high performance in all working conditions.
- Can loosen & aerate soil up to 7 inches deep.
- Boron steel blades that last 50% more than Hi Carbon.
- Helical arrangement of the blades puts less load on the tractor which makes tillage fast and economical.

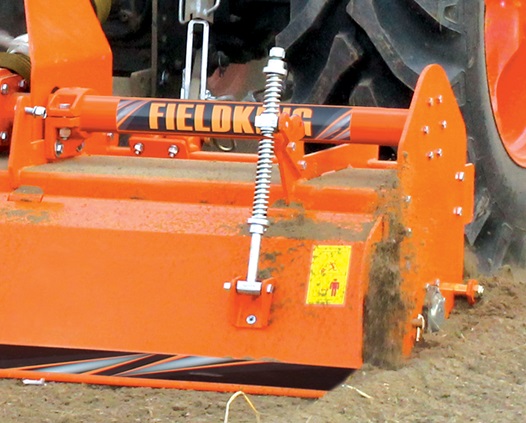

- Heavy duty spring assembly in plank which ensures perfectly levelled and finished seedbed.
- Available in L, C & J blade options for proper pulverization
- Heavy duty PTO shaft with shear bolt / slip clutch (optional) for overload protection
- Sealed bearings prevent moisture/mud entry
Parts Manual
-
-
Fieldking, a Pioneer in the agricultural machinery manufacturing industry, was formed in 1978, with a mission to be a front runner in offering the innovative, user-friendly & environmentally sustainable farming solutions to farmers around the globe. As a market leader, we export innovative implements of International standards to 106 Countries.
- Plot No.235, Sec-3, HSIIDC, Karnal -132001 (Haryana), India
